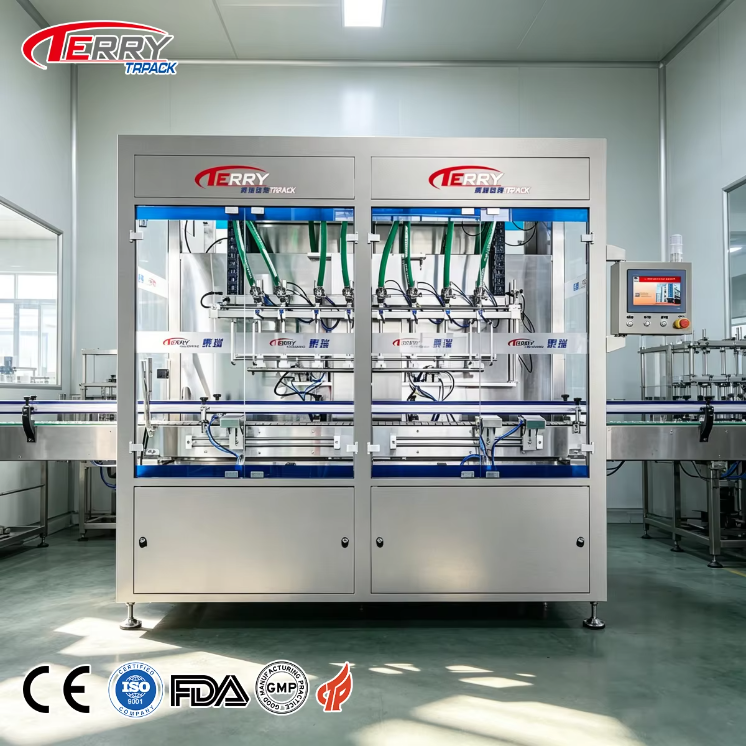

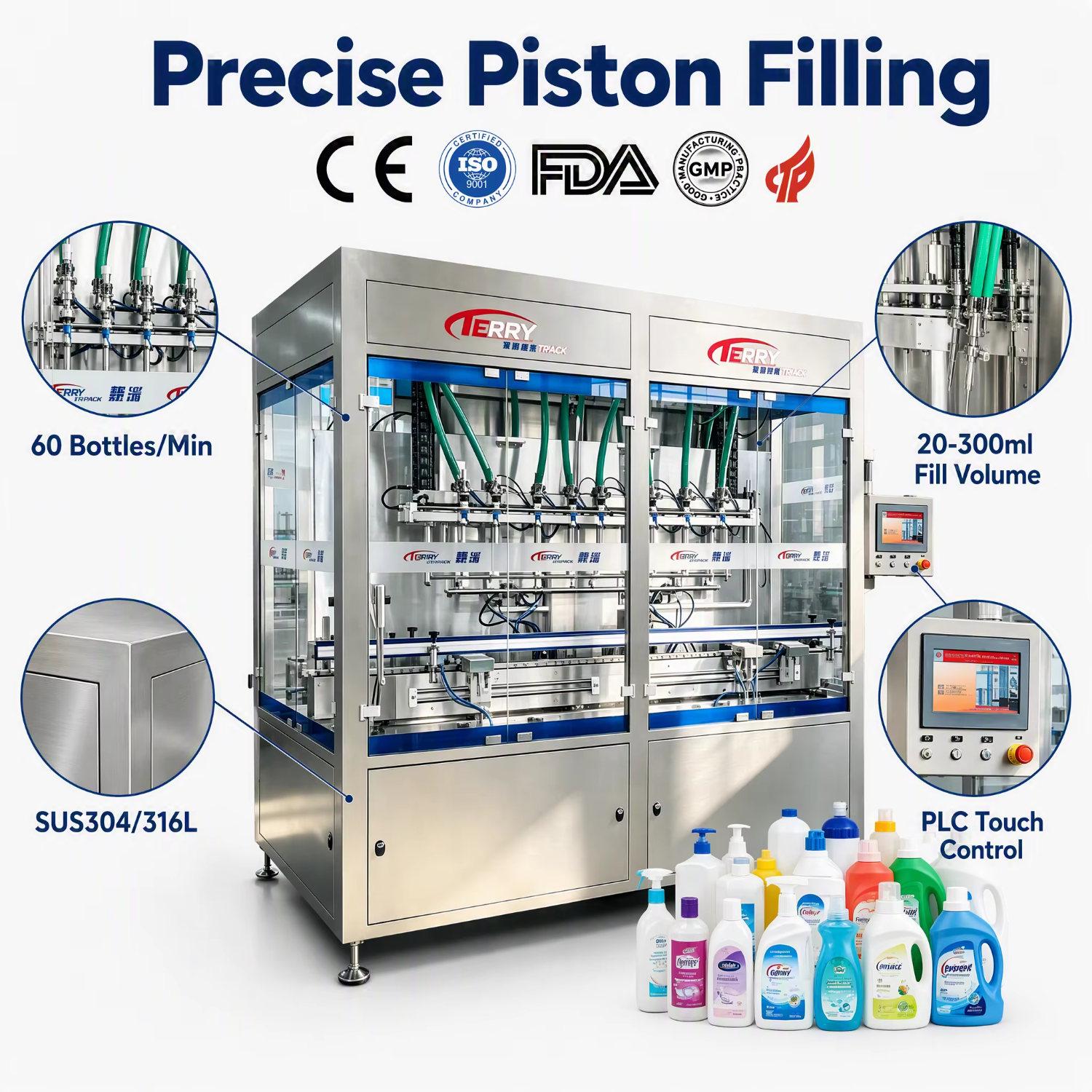

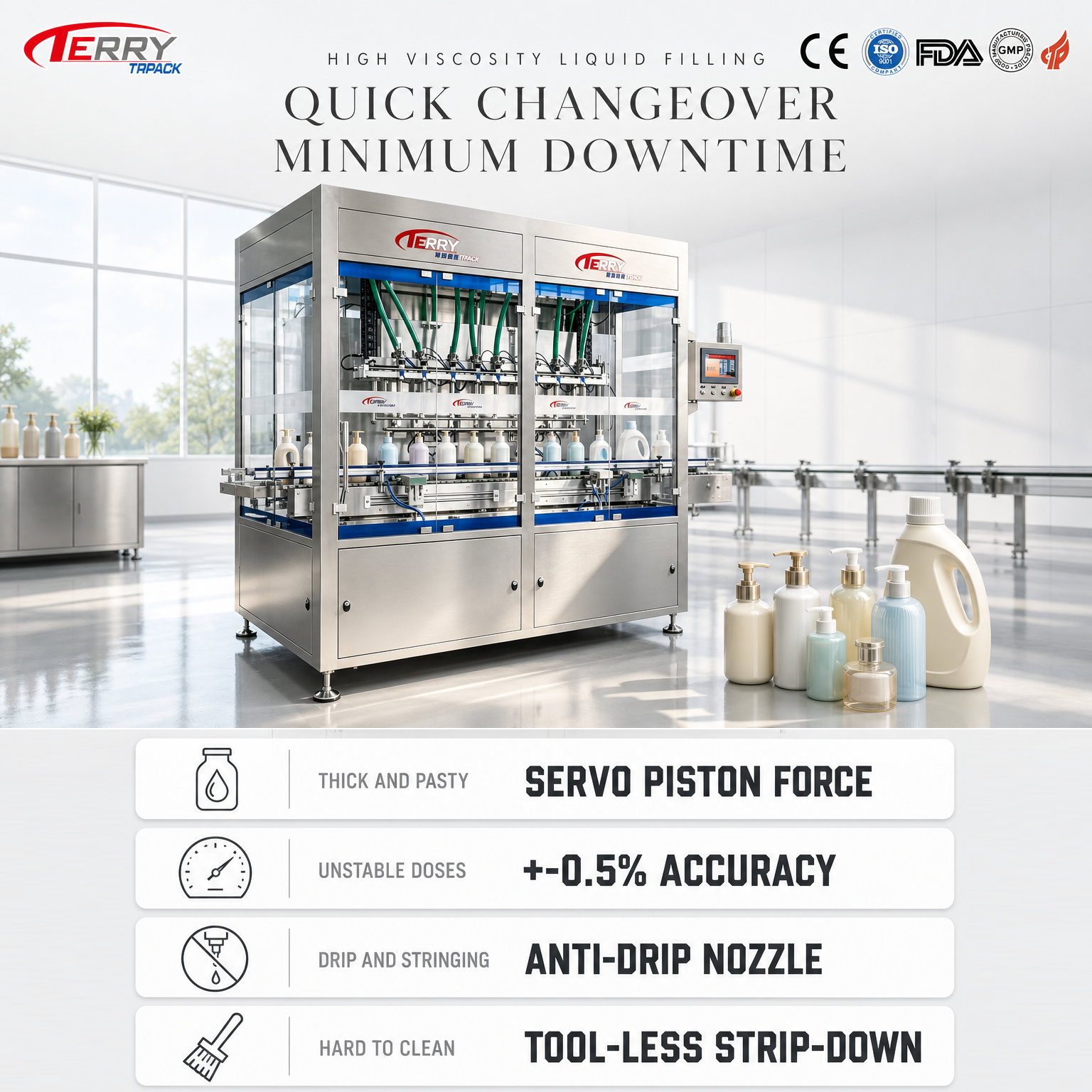

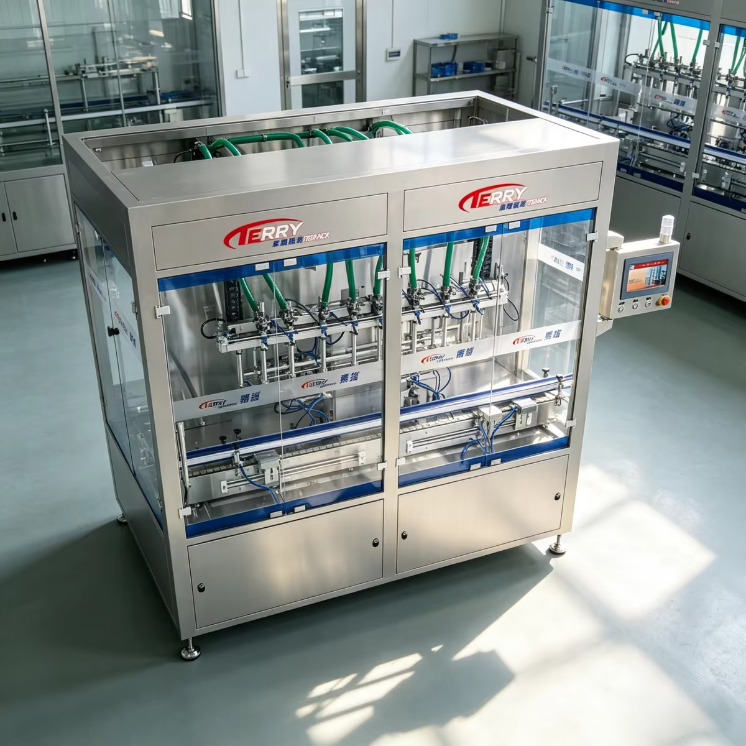

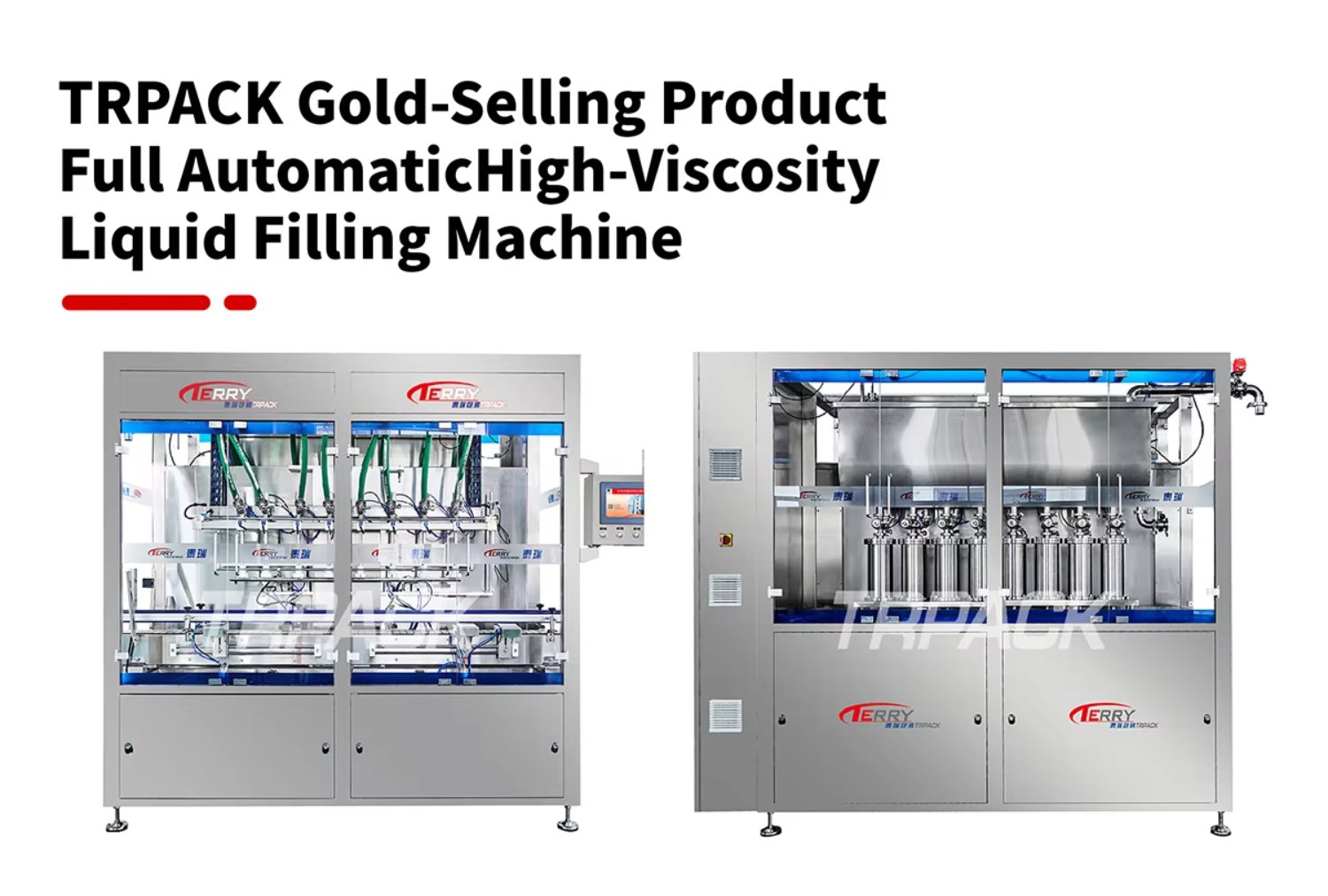

1. GGZ high-viscosity filling machine is widely used for automatic filling of 50-1000mL bottles in industries such as fine chemicals, daily chemicals, and oils.

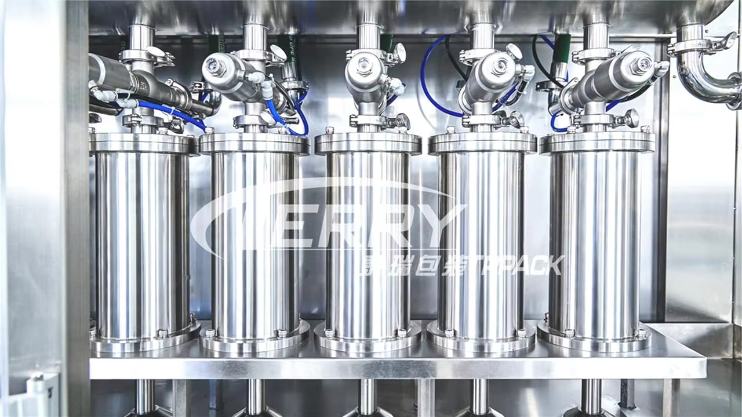

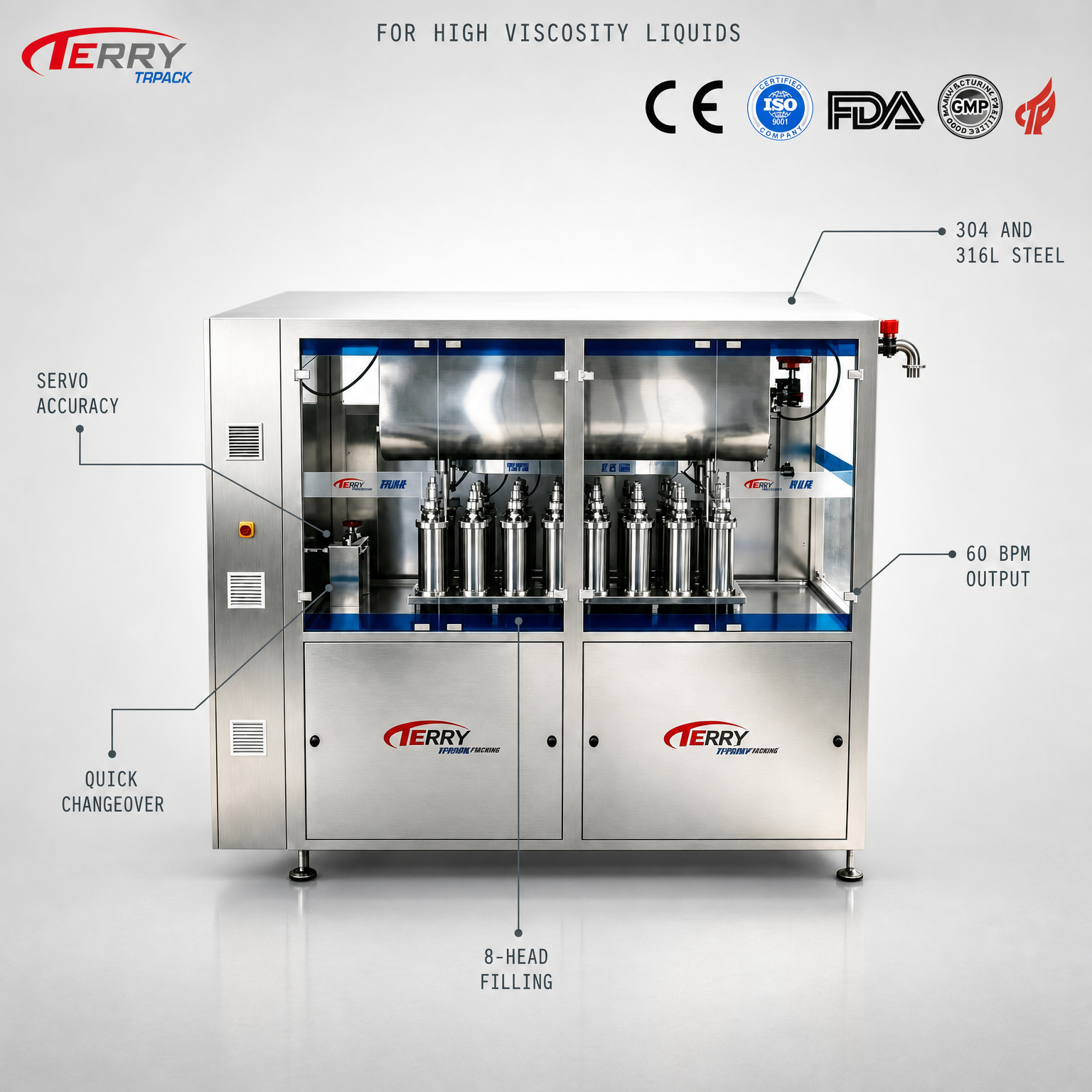

2. The filling unit features a demountable cylinder structure that completely empties the material from the tank, effectively preventing cross-contamination and enabling quick and easy seal replacement.

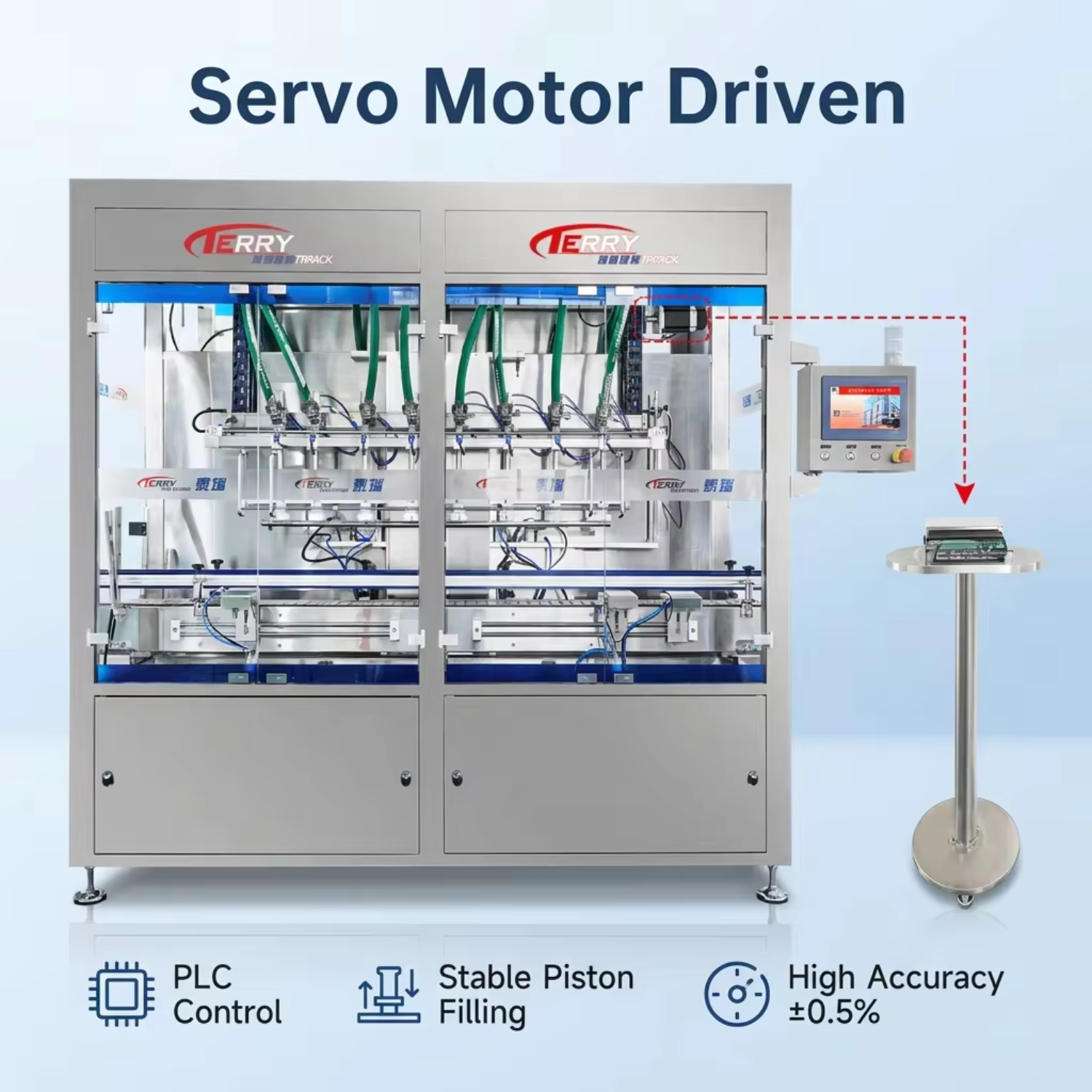

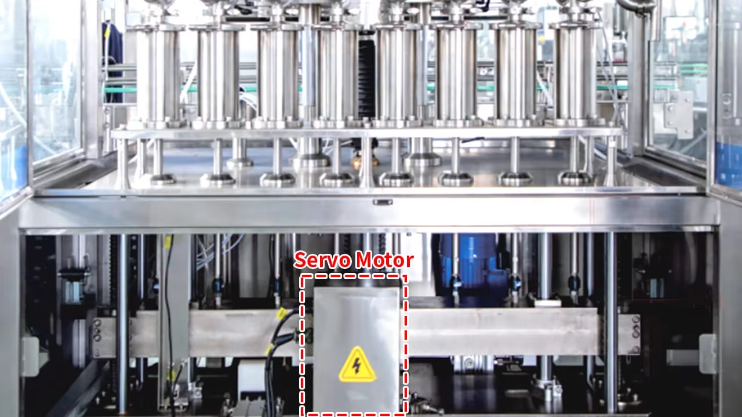

3. PLC programming controls a servo motor-driven synchronous belt paired with a stable dual-screw lifting mechanism, ensuring high-precision piston stroke movement for accurate filling.

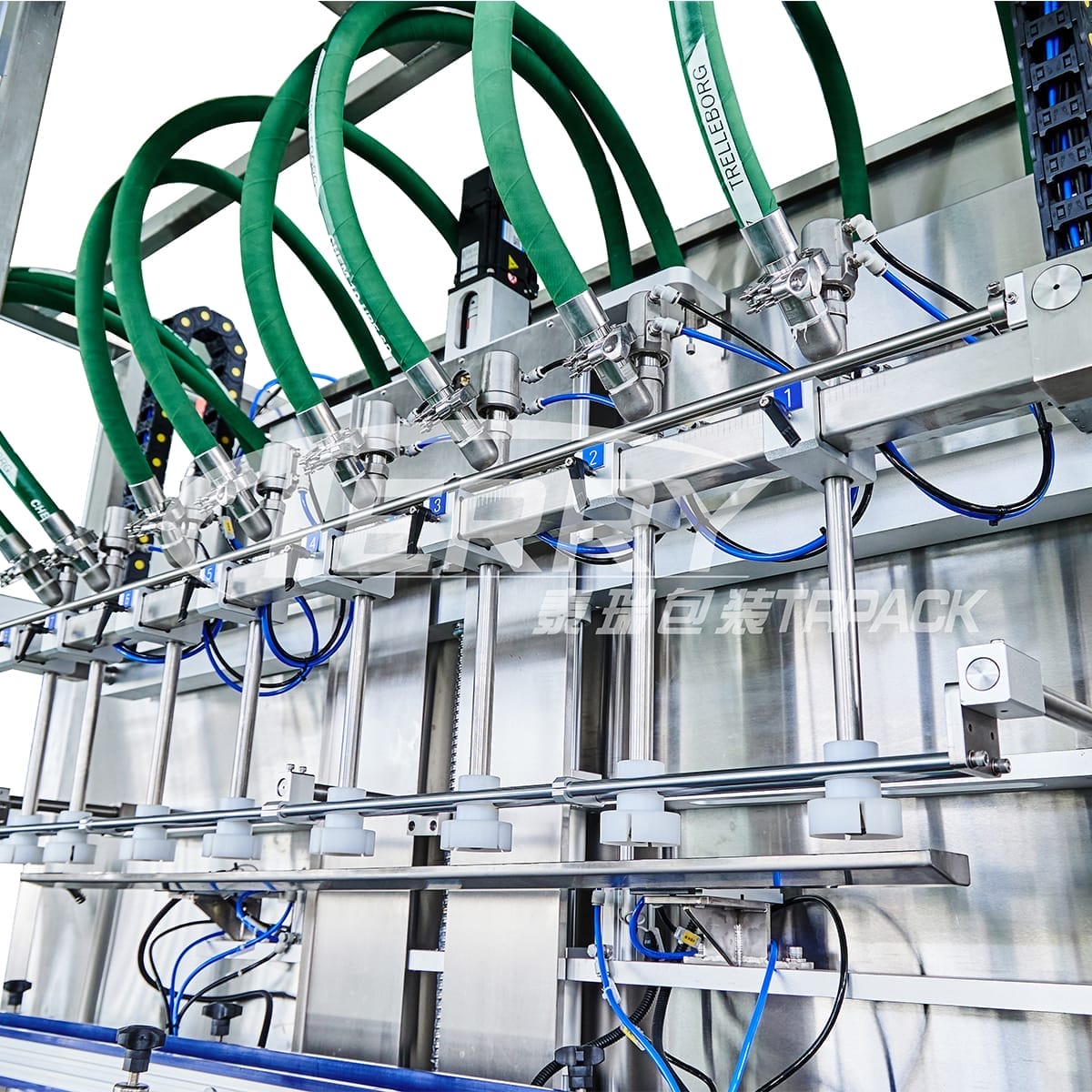

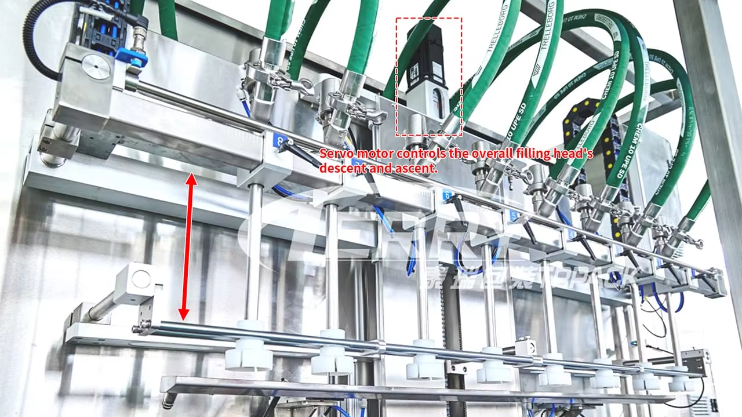

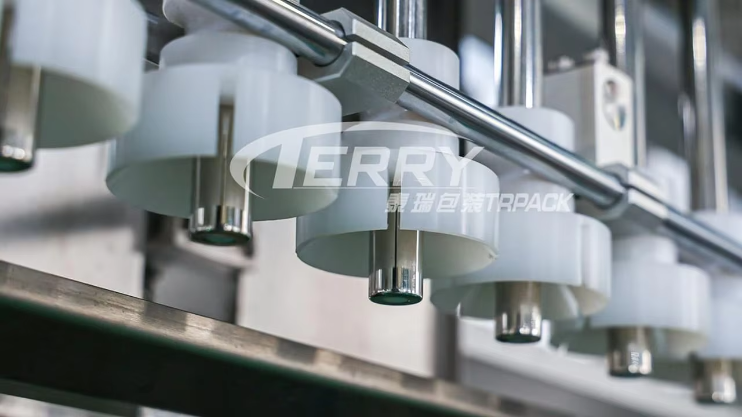

4. Motor-driven filling heads allow height adjustment via the touchscreen for quick and convenient operation.

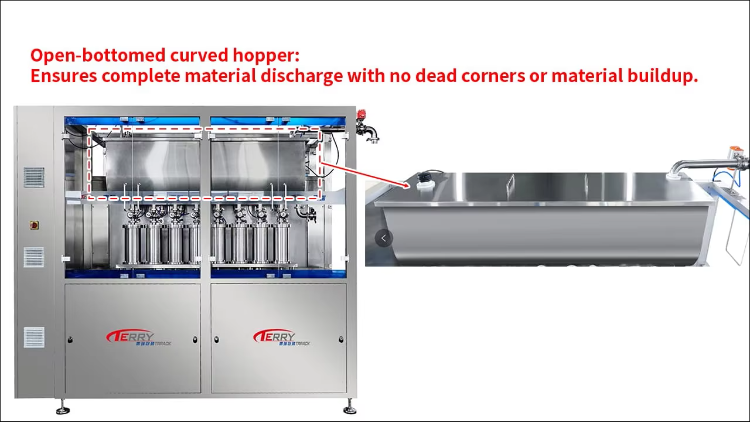

5. The curved bottom design of the filling machine's material hopper ensures complete material discharge with no dead corners or residue buildup.
6. Electronic weighing system enables one-touch dose adjustment.

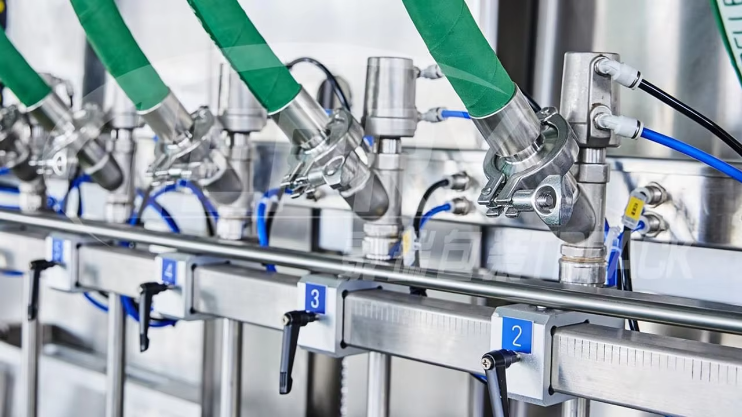

7. Sanitary-grade piping and quick-connect fittings facilitate easy adjustment, disassembly, and cleaning.

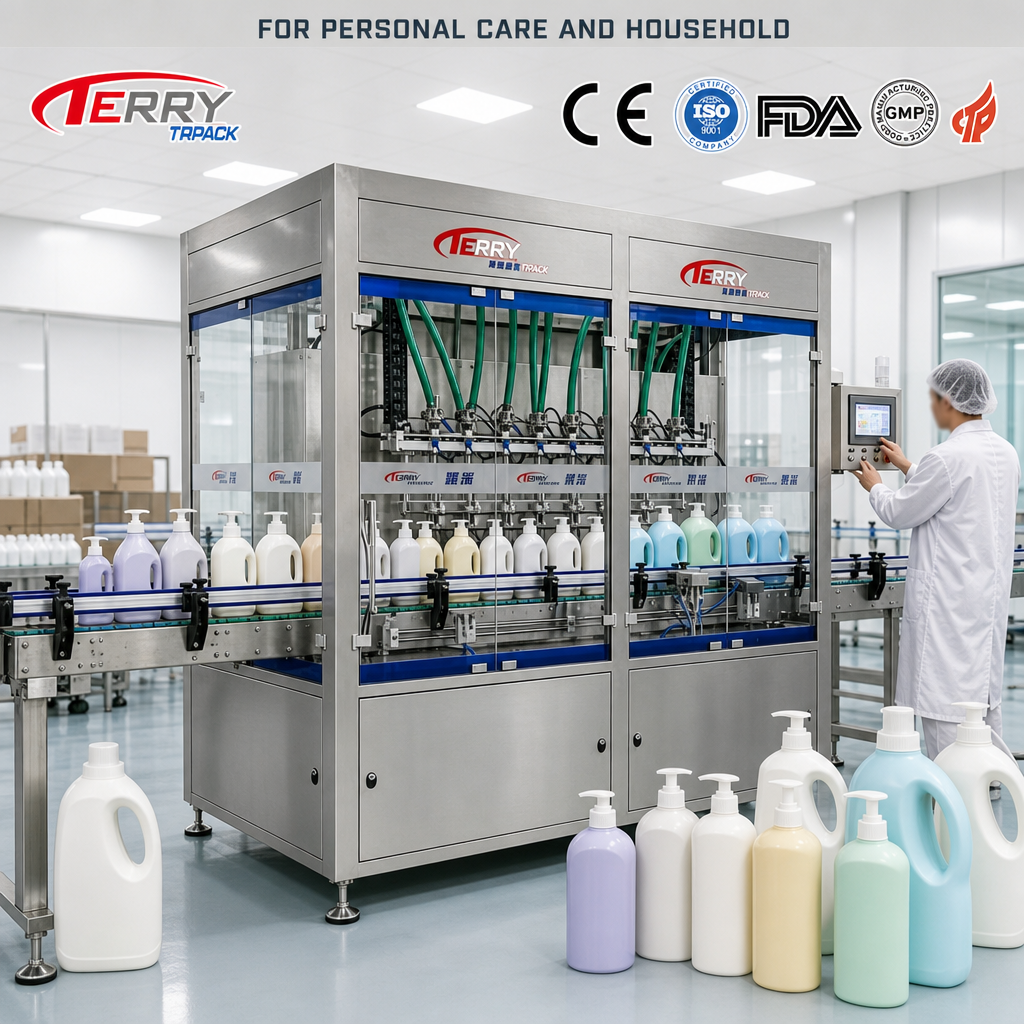

It is suitable for filling viscous liquids or paste-like products, such as shampoo, lotion, and shower gel. It is suitable for filling viscous liquids or paste-like products, such as shampoo, lotion, and shower gel.
| Filling Head | 6 |
| Filling Volume | 100-1000ml |
| Filling Accuracy | 100-200ml±1g ；201-500ml±1.5g ；501-1000ml±2g；Customized Filling accuracy varies according to the characteristics of the materials, the filling volume, and the feeding device. |
| Applicable Bottle Type |
Round Bottle: Φ40-95mm; Bottle Height:80-230mm Tetragonal Bottle: Length 40-95mm; Width 40-95mm; Height 80-230mm Customization Accept |
| Production Capacity |
100ml≥50bottles/min；500ml≥40bottles/min；1000ml≥25bottles/min Actual production capacity may vary slightly depending on factors such as product material characteristics, filling volume, and operator proficiency. |
| Air Operated Resource | 0.6 ~0.8Mpa (Use dry and clean compressed air.) |
| Power Supply | AC380V Three Phase50hz |
| Total Power | 2.5KW |
| Air Consumption | 200 L/min |
| Overall Dimensions (Main Machine) | 1795×1240×2068mm（L×W×H） |
| Overall Weight | 1100 KG |

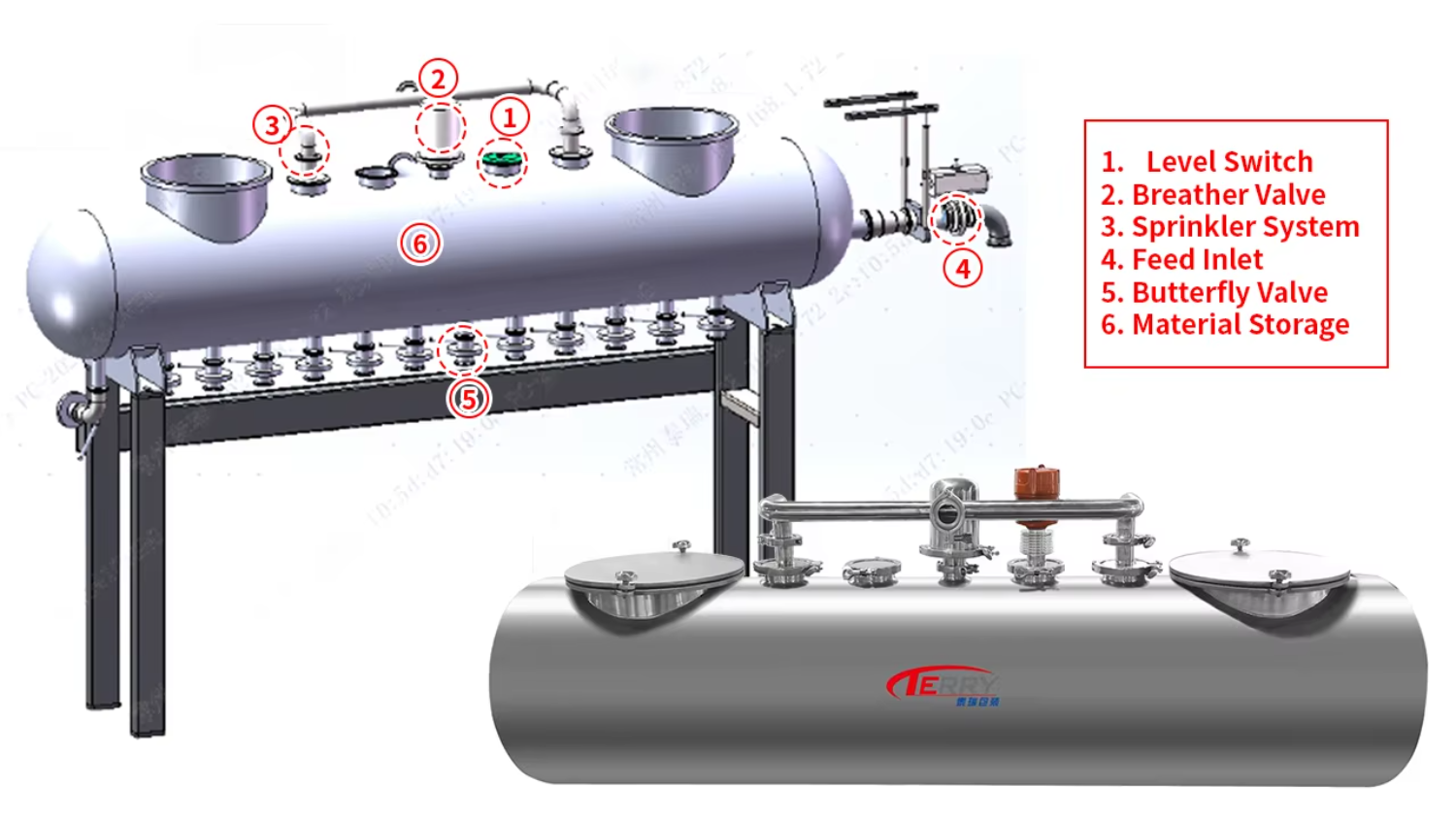

| Constituent Parts | Primary Functions |
|---|---|
| Level Switch | Ceases material replenishment at high liquid levels and alerts for replenishment at low levels |
| Breather Valve | Maintains material tank pressure equilibrium to minimize liquid evaporation |
| Sprinkler System | Online cleaning capability |
| Feed Inlet | Replenishment Channel |
| Butterfly Valve | DN40 butterfly valve for switching material flow between the tank and piston cylinder |
| Material Storage | Loads materials for filling operations |

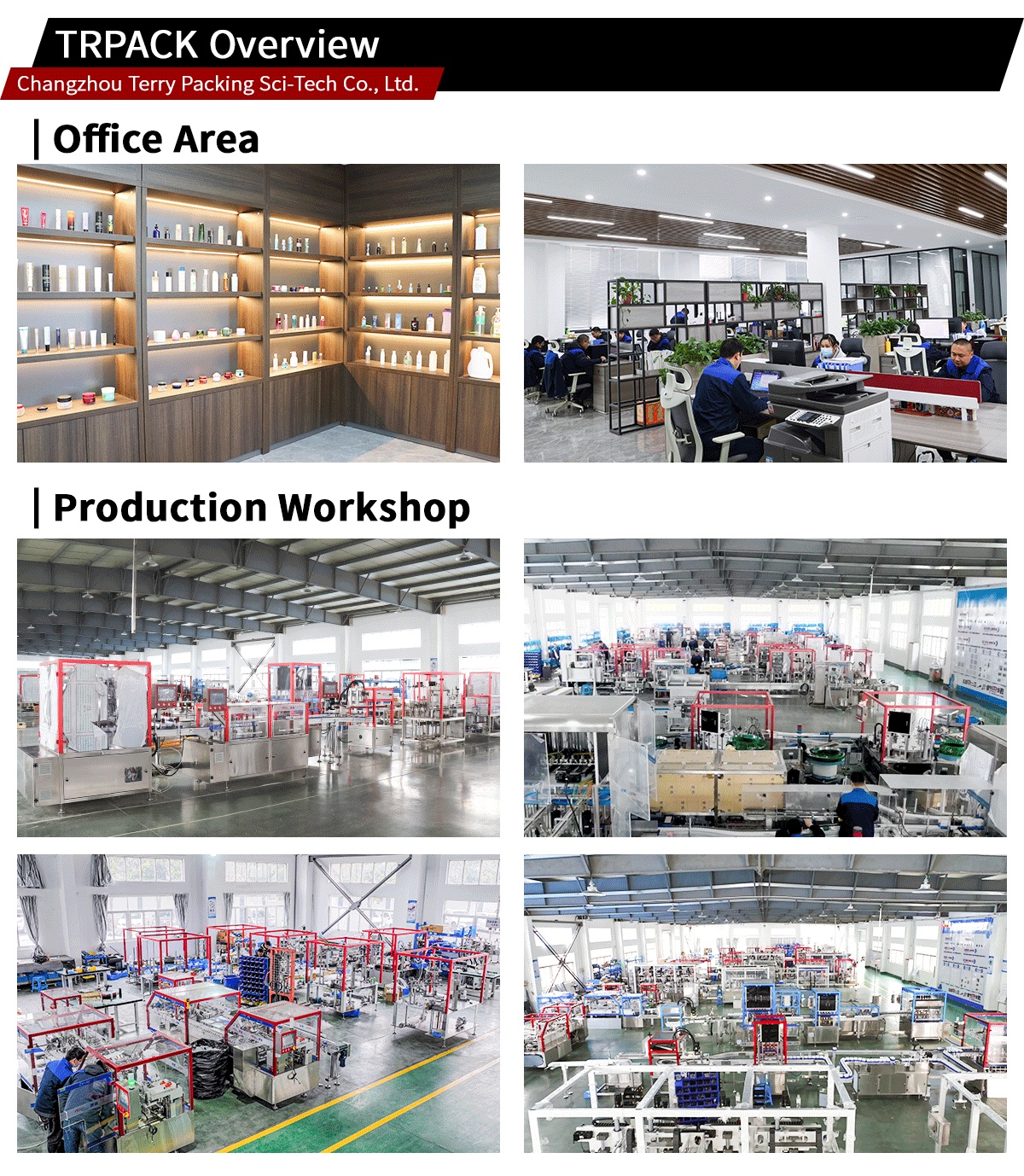

Changzhou Terry Packing Sci-Tech Co., Ltd. (TRPACK) is a premier manufacturer and global supplier specializing in high-end packaging equipment for daily chemicals, cosmetics. With nearly a decade of industry-leading growth, TRPACK has established itself as a benchmark for excellence in the cosmetic machinery field.
